THX Interconnect



Total HDMI 2.1b Functionality and at the Highest 8K Bandwidth



Each THX Interconnect cable is Ultra HighSpeed HDMI Certified and supports all HDMI 2.1b features, including 8K-10K signal delivery up to 48Gbps, Dynamic HDR (HDR10, HDR10+, HLG & Dolby Vision), enhanced audio return channel (eARC), Consumer Electronics Control (CEC) and HDCP 2.X Compatibility (HDCP 2.3, 2.2 & 1.4).

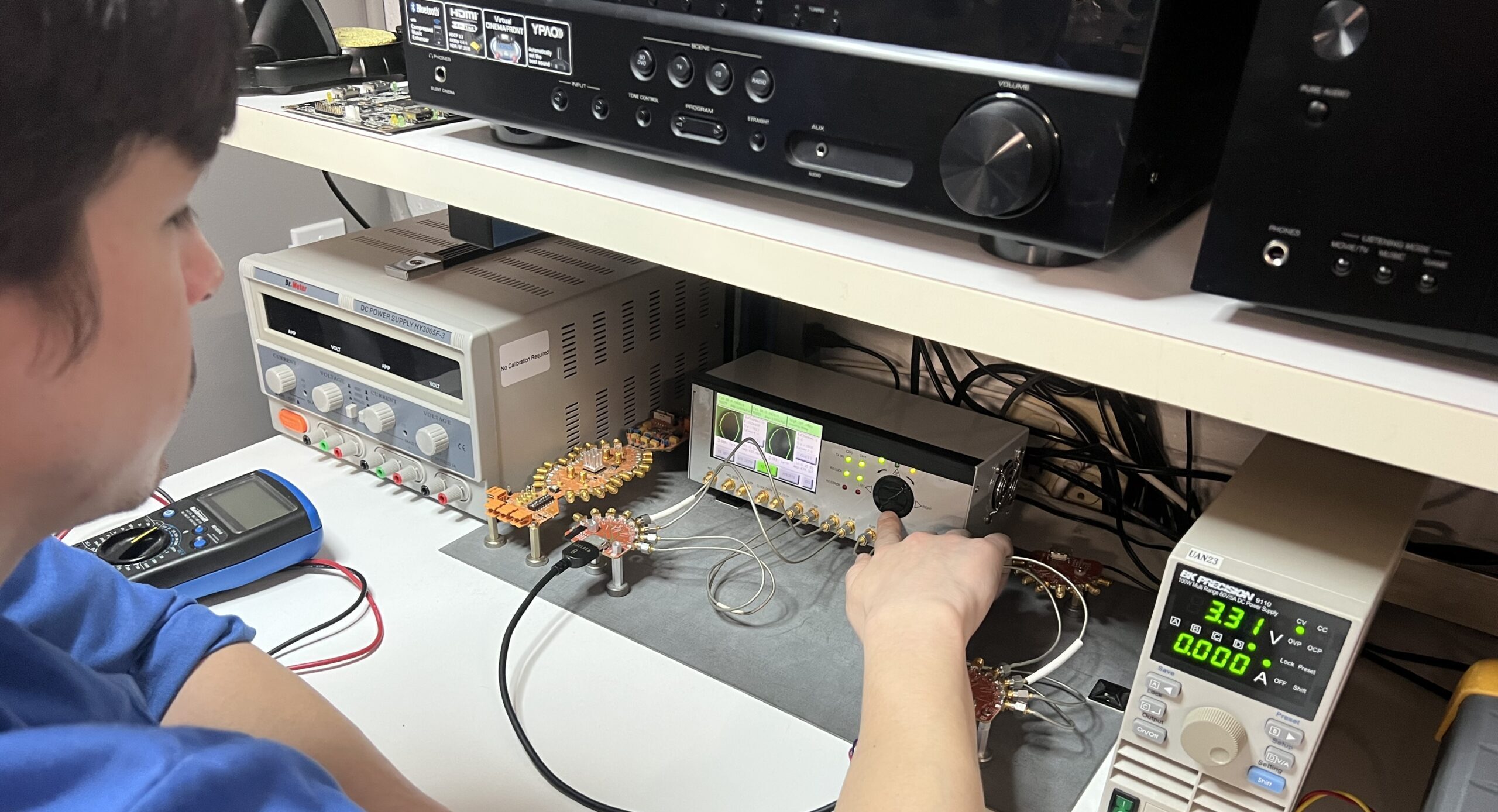

Pixelgen home theater testing



Enhanced Audio Return Channel (eARC)



Send uncompressed/lossless audio codec such as Dolby Atmos and DTS:X at 37Mbps upstream from display to AV Receiver Reciever (or Soundbar) over a dedicated and highly controlled channel within. All THX Interconnect lengths up to 15m utilize this feature.

THX Interconnect



Thin, Flexible, Robust



THX Interconnect cables crossover from 5m (16ft) total-copper construction to the 7.6m (25ft) PXLGLASS(tm) optical solution to maintain a thin outer diameter and flexible design, avoiding heavy inconvenient cabling which can cause unnecessary strain on HDMI equipment ports. The light-weight design, thinnest possible diameter and small bend radius at all lengths make installation and management easier and highly effective.



Professional at Every Length



From 0.5 to 15 meters, THX Interconnect cables come in nine-length segments to meet the needs of nearly any home theater or private cinema. Each length comes with total HDMI 2.1b functionality and full 48G bandwidth throughput capability.

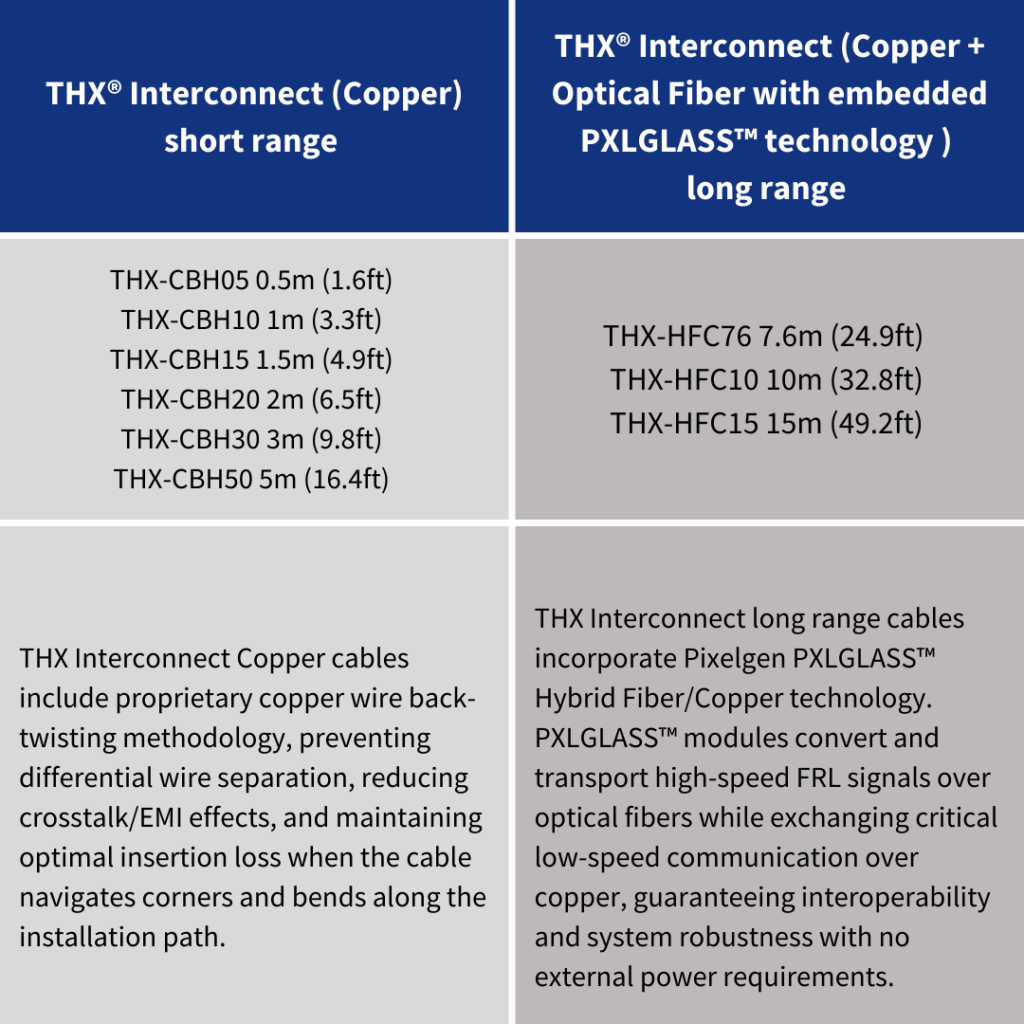

THX Interconnect family of cables comparison chart

THX Interconnect

Meticulously Crafted

Maximized strain-relief ensures all force is transferred away from critical HDMI signal solder points. IR Soldering creates consistent solder joints for solid wire-to-pad connectivity and to assure minimal “stubs” that can cause signal reflections and errors.

HDMI® Enhanced Gaming Features

Never let gameplay lag with the all-new gaming-centric enhancements of Quick Media Switching (QMS), Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT).
Testing

THX Certification

THX Certification is a service offered by THX for third party partner manufacturers, so although THX Interconnect does not bear the THX Certified seal, it does meet all rigorous THX Certification standards for 8K Interconnect.

Full Specifications


THX Interconnect (Copper)
THX Interconnect (Copper) Cable Product Brief
THX Interconnect (Optical PXLGLASS)
THX Interconnect (Copper + Optical) Cable Product Brief

Learn More About THX Interconnect

THX Interconnect Performance Summary White Paper

THX Interconnect is available globally, exclusively through Pixelgen
